Perforated metal sheets are an extremely versatile product that is ideal for use within the industrial, commercial, architectural industries. The possibilities are truly endless as they can be used as carpark screens, decorative panels and acoustic sound barriers, just to name a few.
We have a wide range of stock perforated metal profiles kept nationally as well as an array of custom perforated metal profiles to suit most applications. Our custom capabilities mean that we can offer you perforated sheets made to size, using either our stock or custom profiles to your requirements.

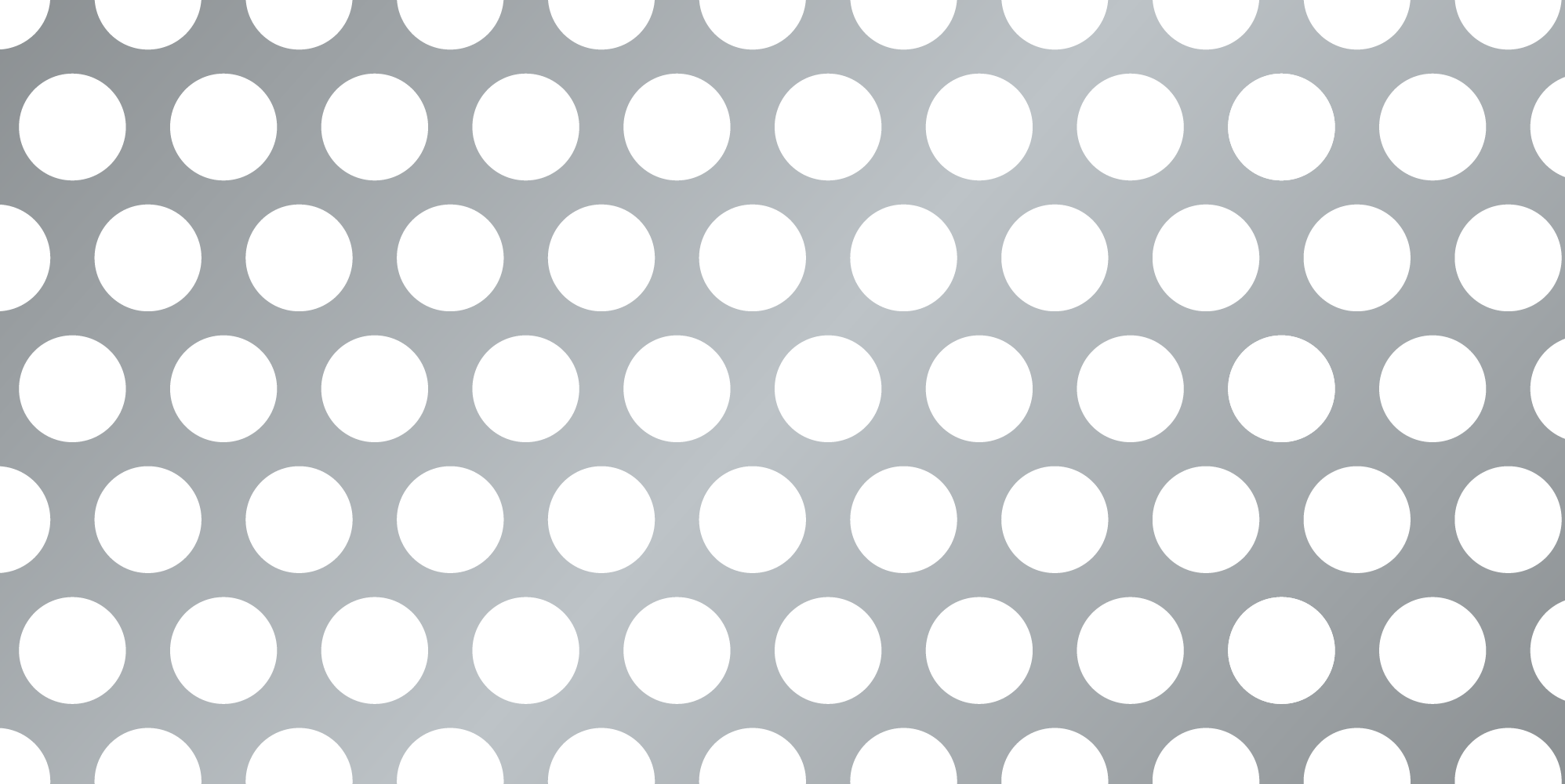

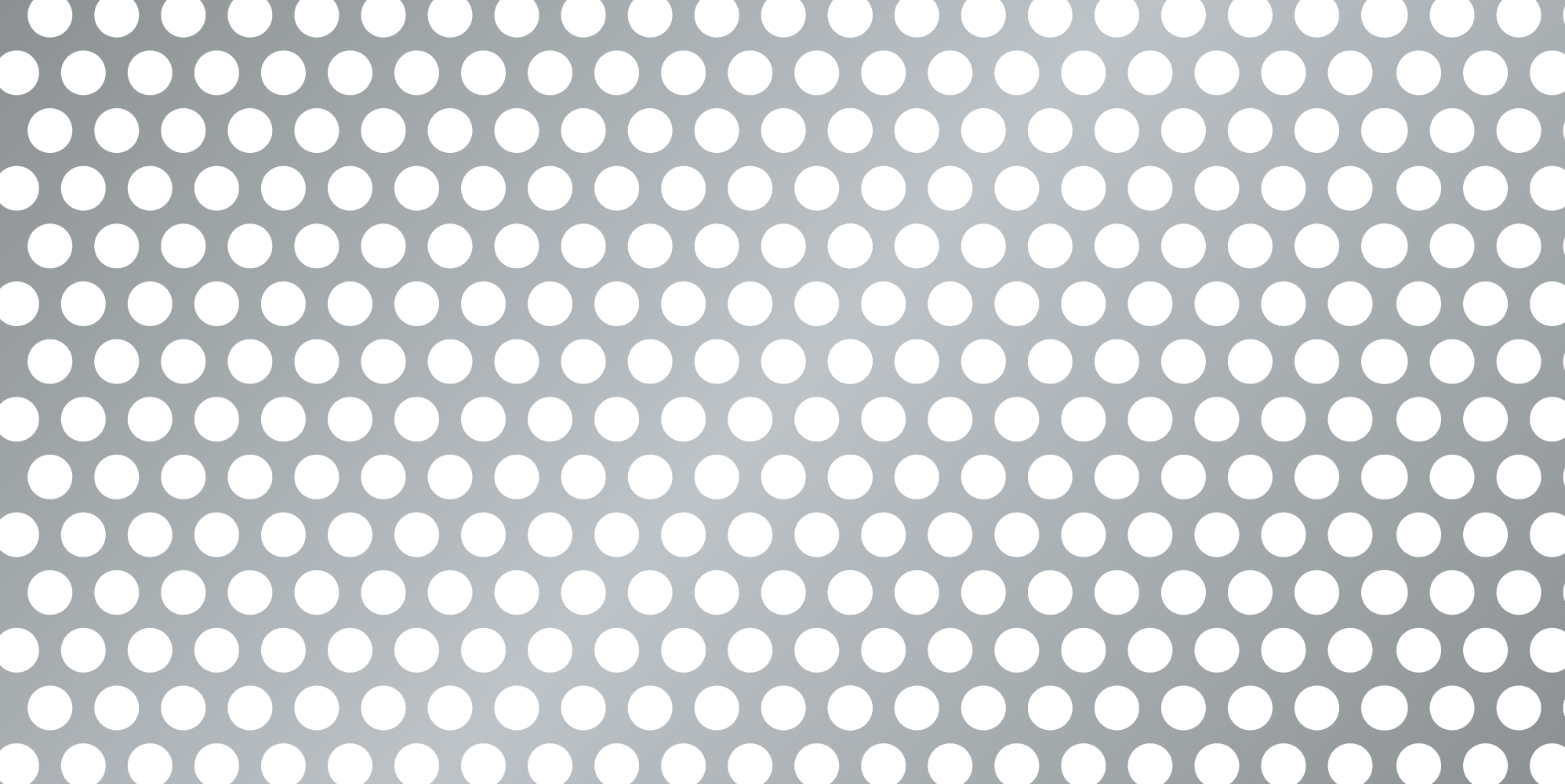

Round Profiles
Stocked Profile |
Custom Profile |
Material Capability Limitations
Stocked Profile Material: Aluminium (AL) | Galvabond (GB) | Mild Steel (MS) | Stainless Steel (SS) | Zinc Anneal (ZA)
Click on the image to download the technical drawing.
DIA: 2.43 | PITCH: 9.53 | OA: 11% AL, GB, SS, ZA
Acoustic
DIA: 3.25 | PITCH: 4.78 | OA: 42% AL, MS, SS
DIA: 3.25 | PITCH: 5.59 | OA: 30% AL, GB, MS, SS
DIA: 3.25 | PITCH: 6.10 | OA: 25%
DIA: 3.25 | PITCH: 9.682 | OA: 10%
DIA: 4.76 | PITCH: 6.35 | OA: 51% AL, GB, MS, SS
DIA: 4.76 | PITCH: 7.92 | OA: 33%
DIA: 4.76 | PITCH: 11 | OA: 17%
DIA: 5 | PITCH: 7.5 | OA: 40%
DIA: 5 | PITCH: 12 | OA: 15%
DIA: 5 | PITCH: 18 | OA: 7%

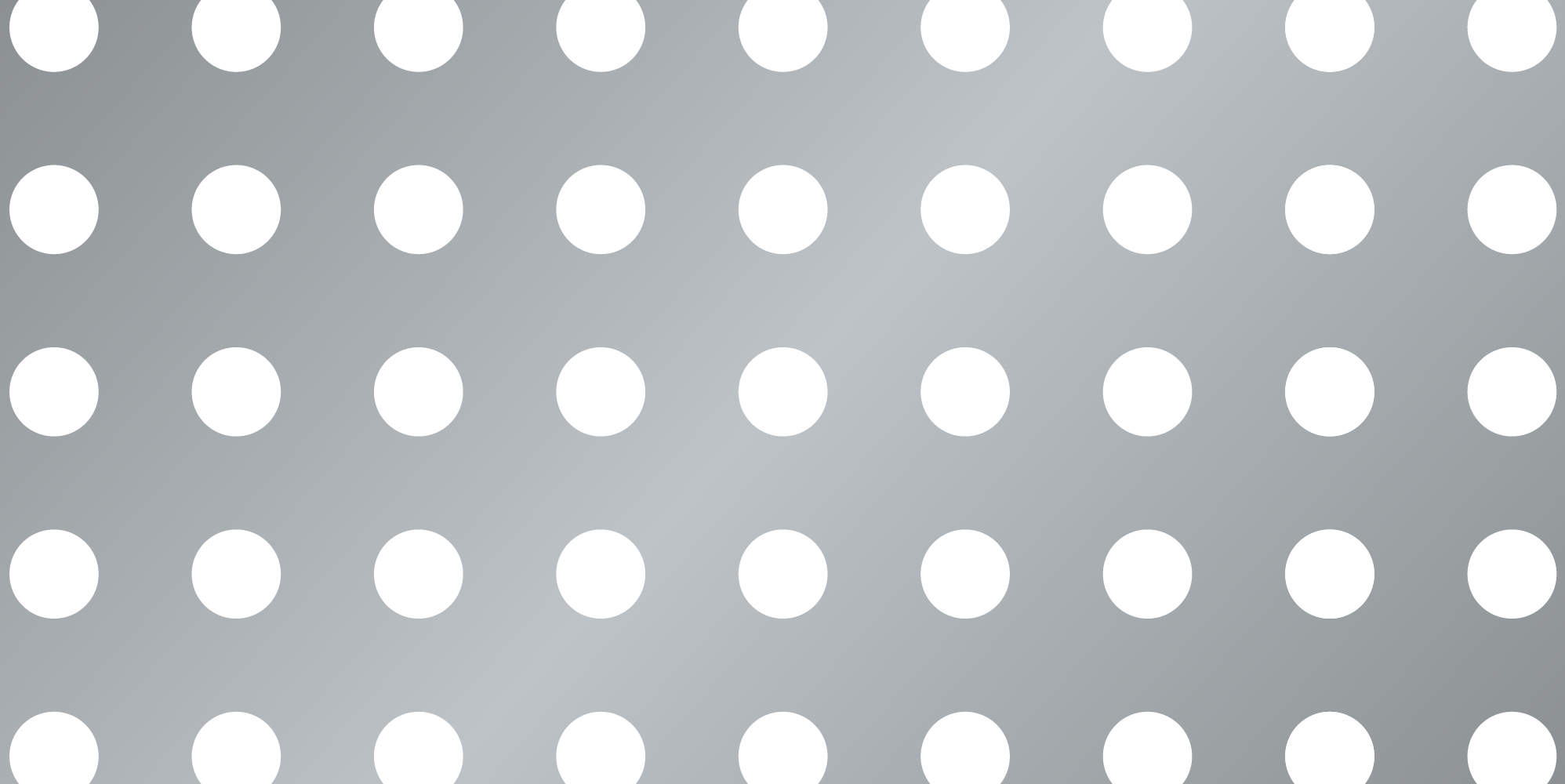

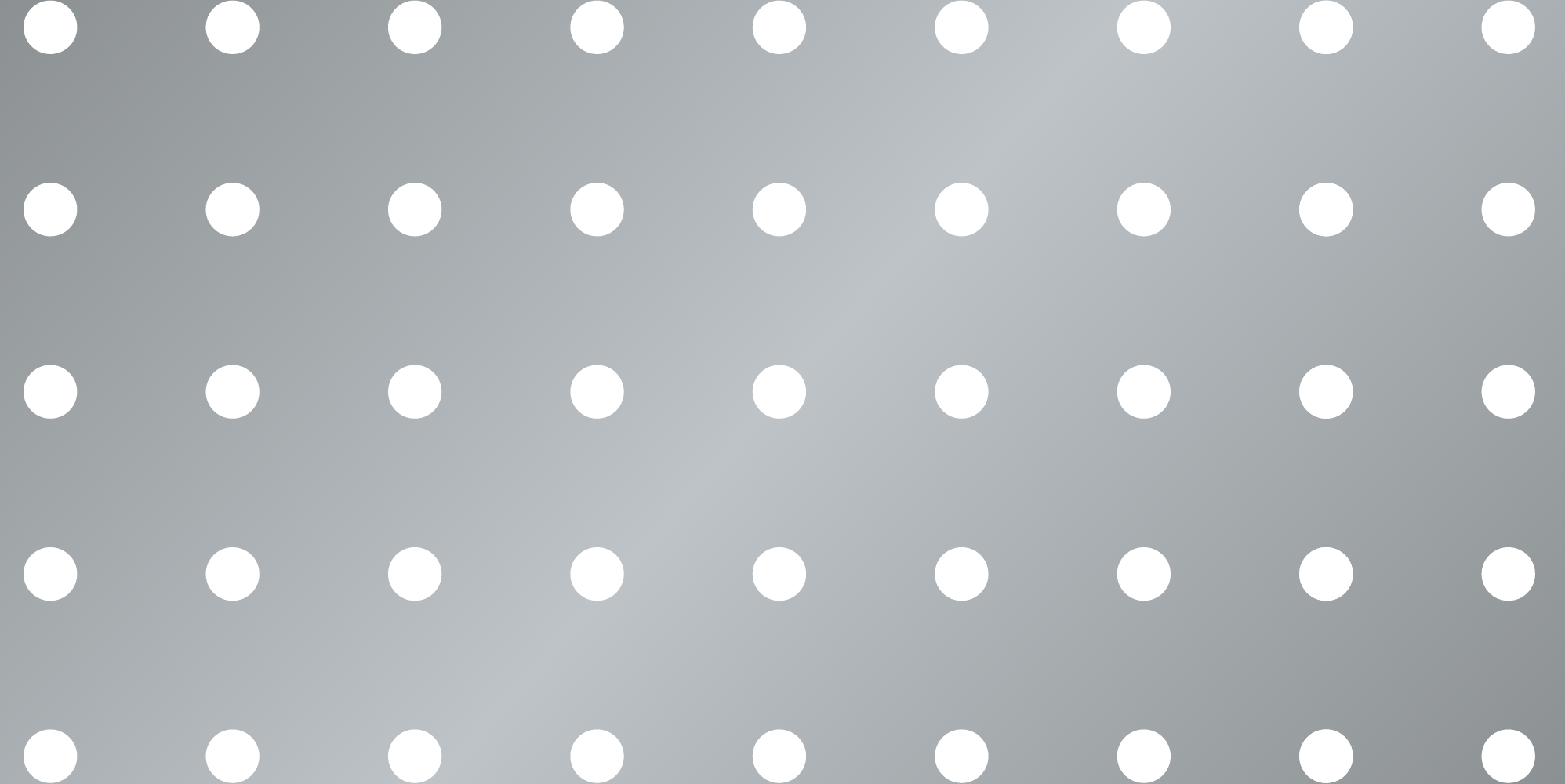

DIA: 6 | PITCH: 20.5 | OA: 7% | ON SQ

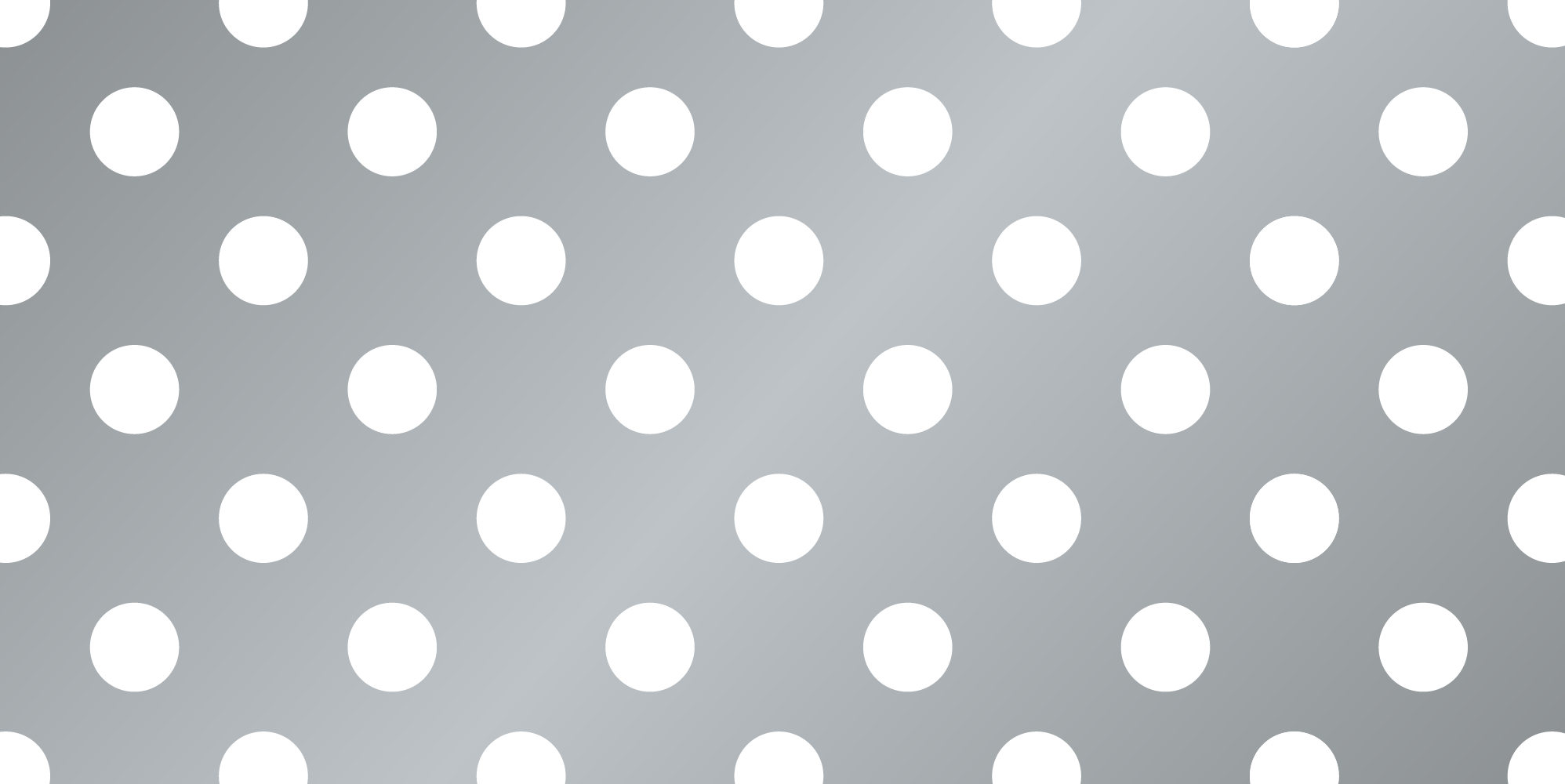

DIA: 6 | PITCH: 20.5 | OA: 7% | 45°
DIA: 6.35 | PITCH: 8.70 | OA: 48%
DIA: 6.35 | PITCH: 9.55 | OA: 40% AL, GB, MS, SS
DIA: 6.35 | PITCH: 12.733 | OA: 22%
DIA: 7.94 | PITCH: 9.55 | OA: 63% MS, GL
DIA: 8 | PITCH: 10 | OA: 58%
DIA: 8 | PITCH: 11.2 | OA: 46%
DIA: 10 | PITCH: 13.2 | OA: 52%
DIA: 10 | PITCH: 15 | OA: 40% GB, MS, SS
DIA: 10 | PITCH: 17 | OA: 31%
DIA: 10 | PITCH: 20.5 | OA: 19% | SQ
DIA: 10 | PITCH: 20.5 | OA: 19% | 45°
DIA: 12 | PITCH: 17 | OA: 49% GB, MS, SS
DIA: 16 | PITCH: 19 | OA: 64%
DIA: 19 | PITCH: 25.4 | OA: 51% MS
Non-Slip Floor Plate MS

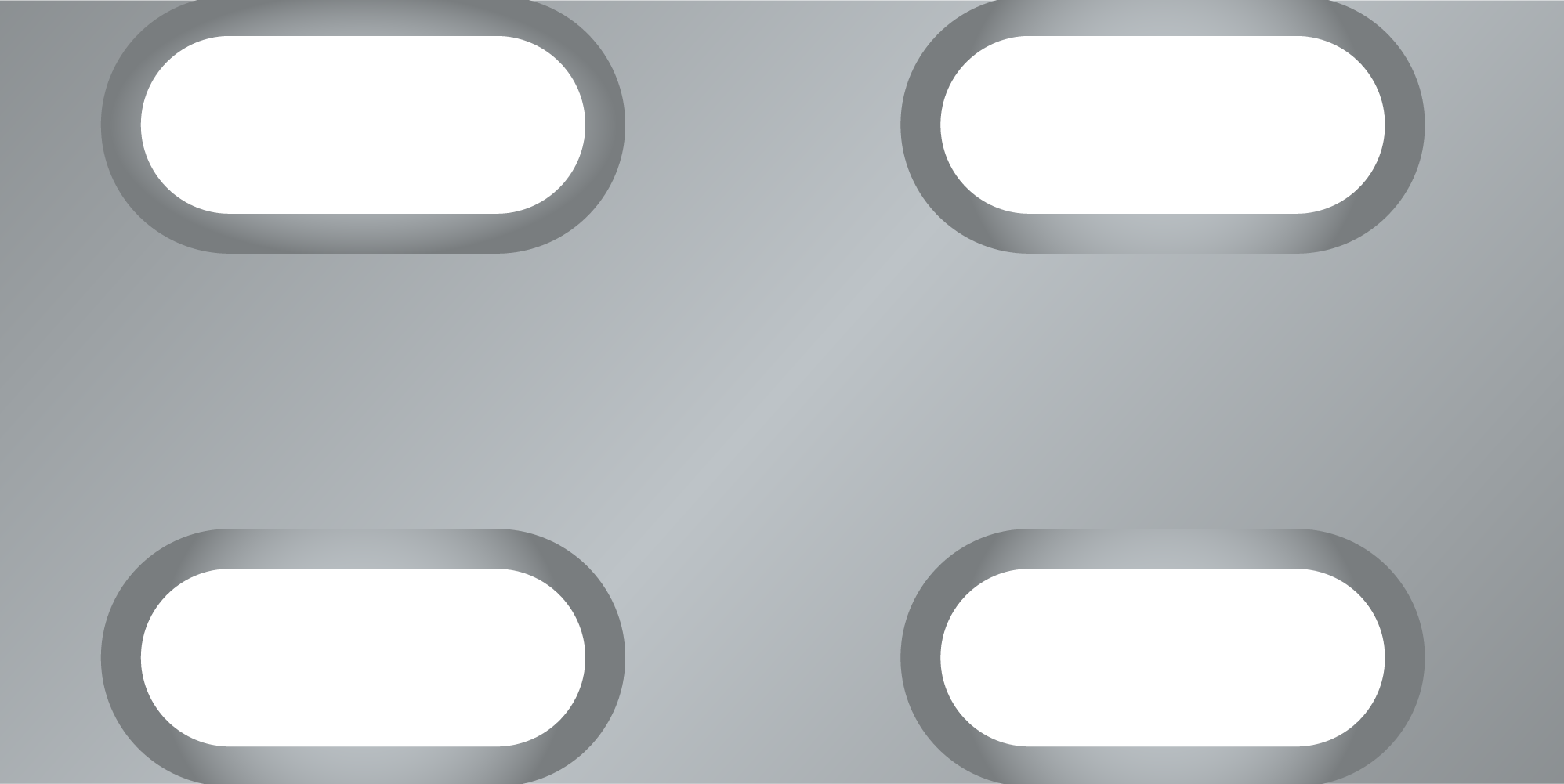

Non-Slip Truck Bed MS
Slots, Squares & Triangles
Click on the image to download the technical drawing.
Bermuda
DIA: 19 | PITCH: 31.71 | OA: 63%

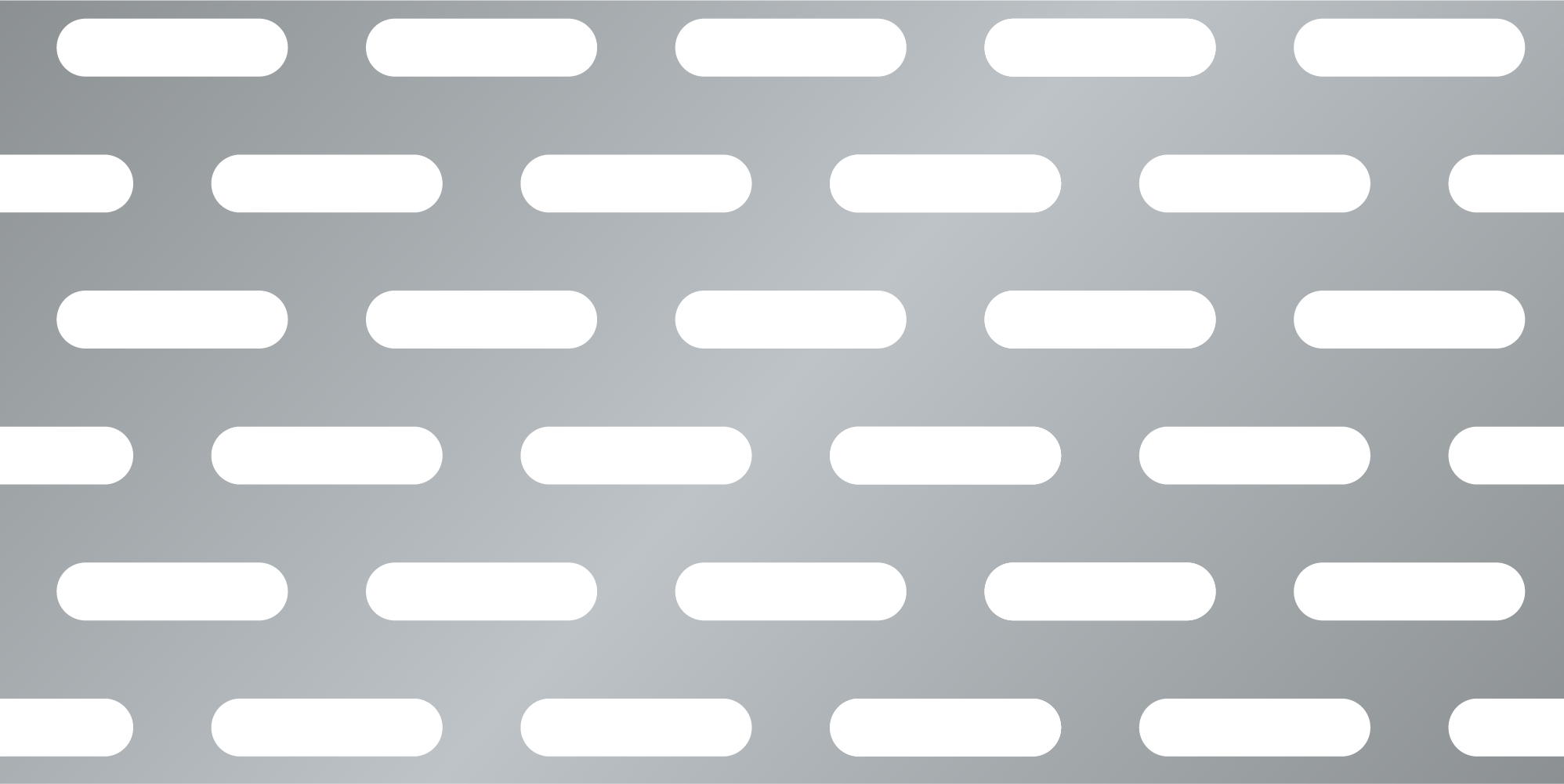

Slots 30
DIA: 26 x 6.5 @ 34.812 | OA: 30%
Slots 40
DIA: 26 x 6.5 @ 26 | OA: 40% GB

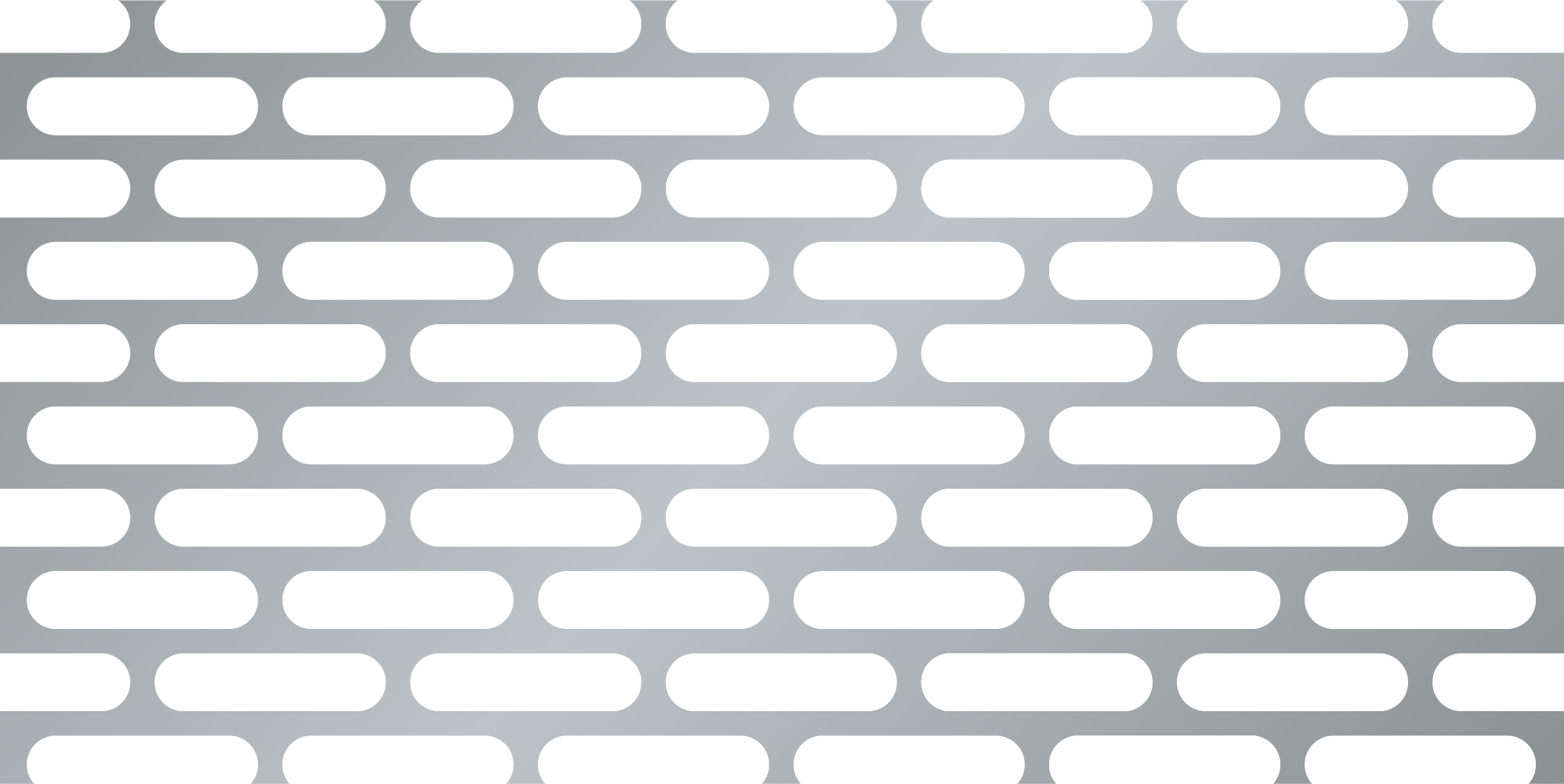

Slots 60
DIA: 26 x 6.5 @ 28.76 | OA: 60%

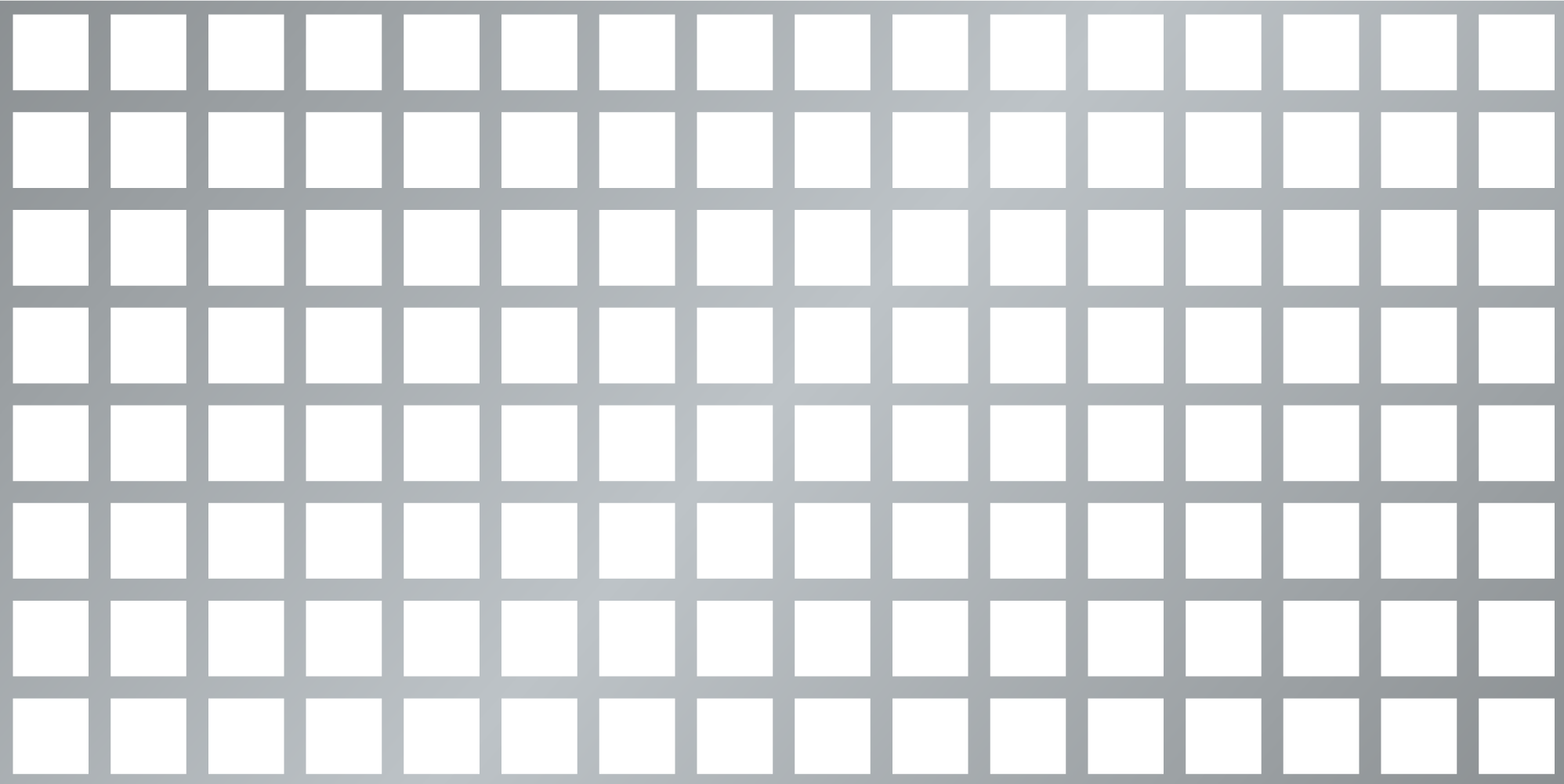

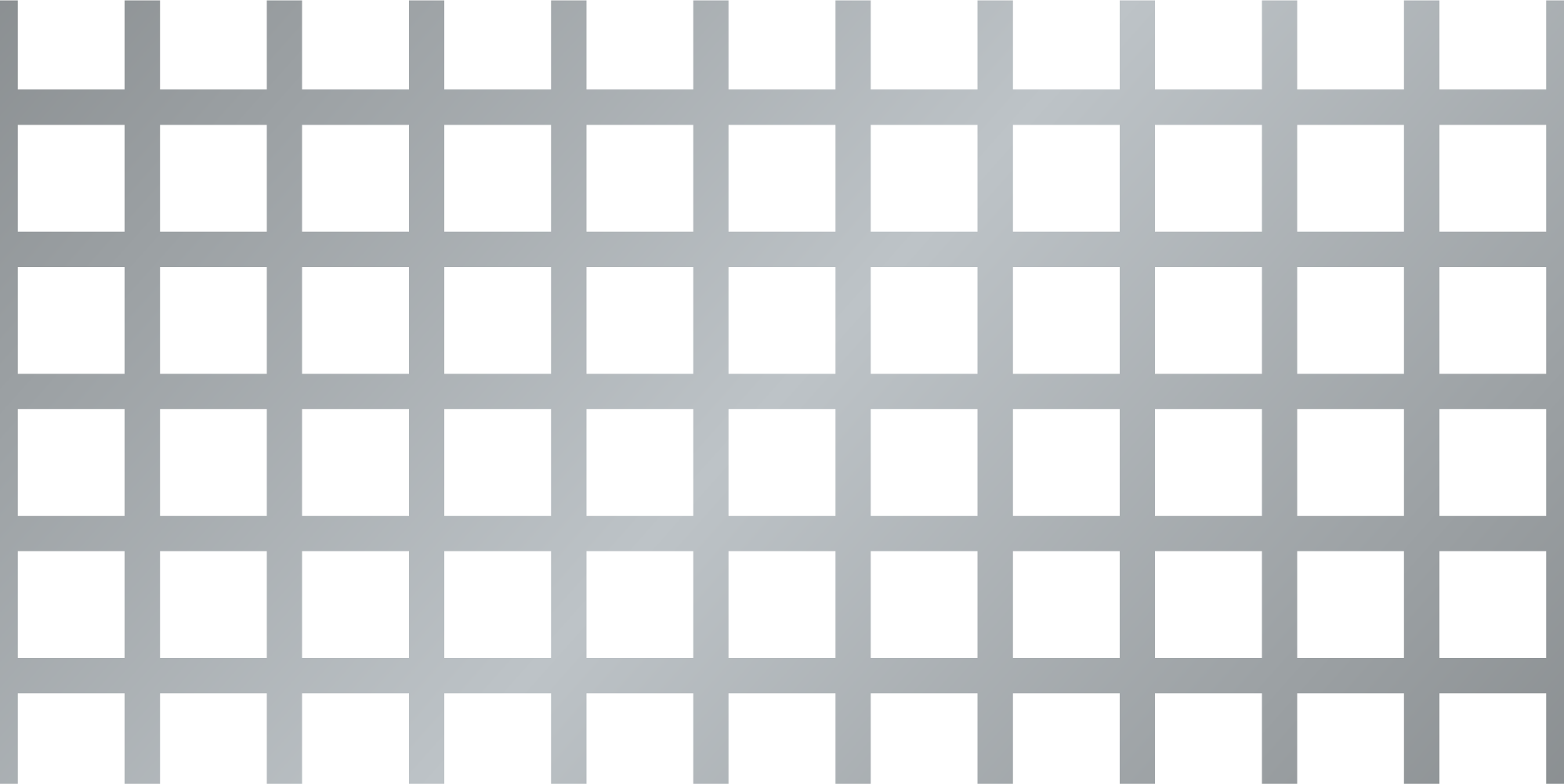

Square 5
DIA: 5 @ 7 | OA: 51%
Square 6.35
DIA: 6.35 @ 7.65 | OA: 69%
Square 8.5
DIA: 8.5 @ 11 | OA: 59%
Square 12
DIA: 12 @ 16 | OA: 56% MS
Pattern Profiles
Click on the image to download the technical drawing.

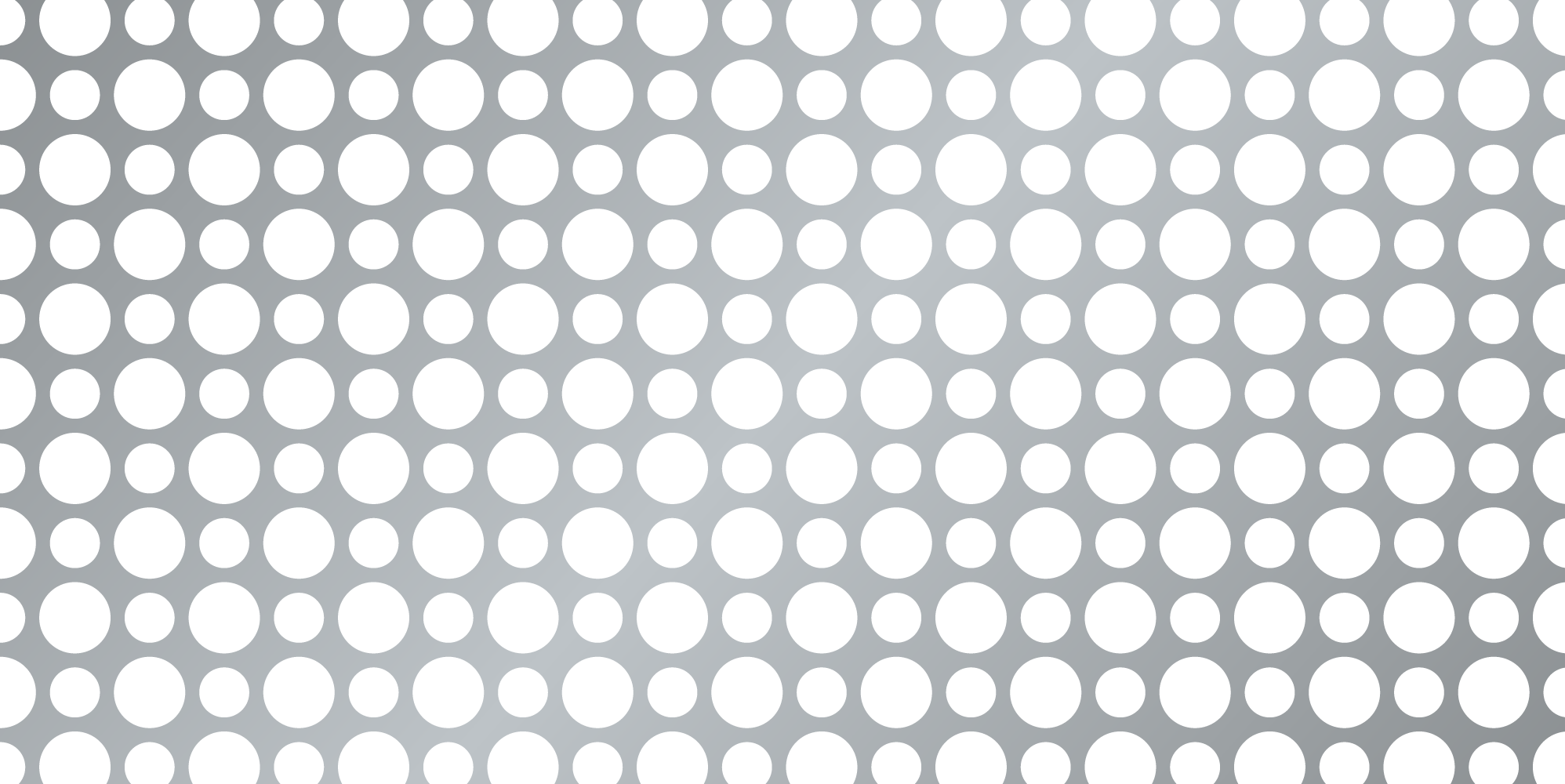

Astro 1
DIA: 14, 20 @ 21 | OA: 51%
Astro 2
DIA: 6, 10 @ 10.5 | OA: 51%
Atom 40
DIA: 15, 20, 28 @ 36 | OA: 40%
Atom 52
DIA: 18, 24, 32 @ 36 | OA: 52%
Atom 62
DIA: 24, 28, 32 @ 36 | OA: 62%
Doppler 25
DIA: 10, 16 @ 20 | OA: 25%

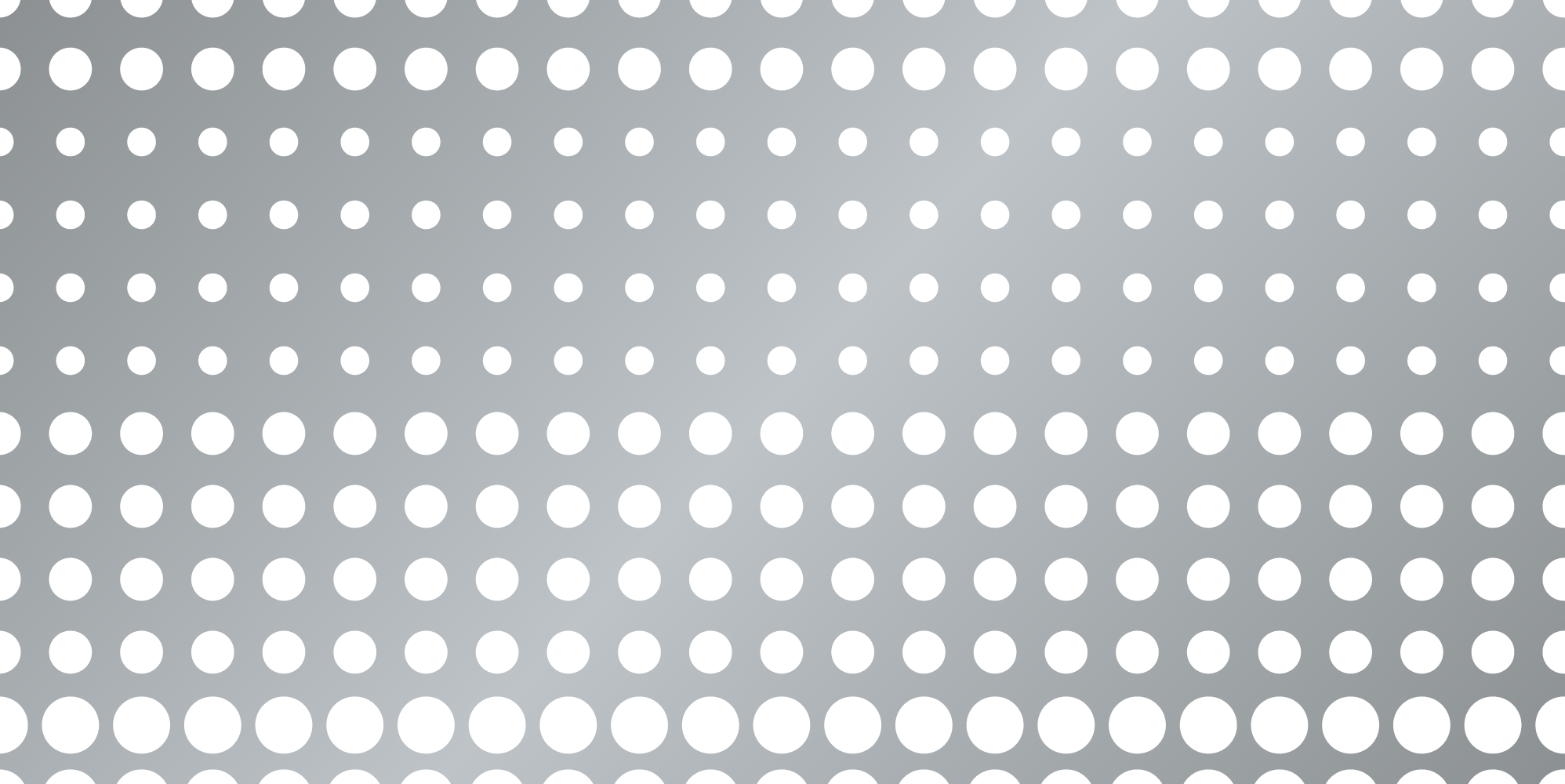

Doppler 33
DIA: 8, 12, 16 @ 20 | OA: 33%

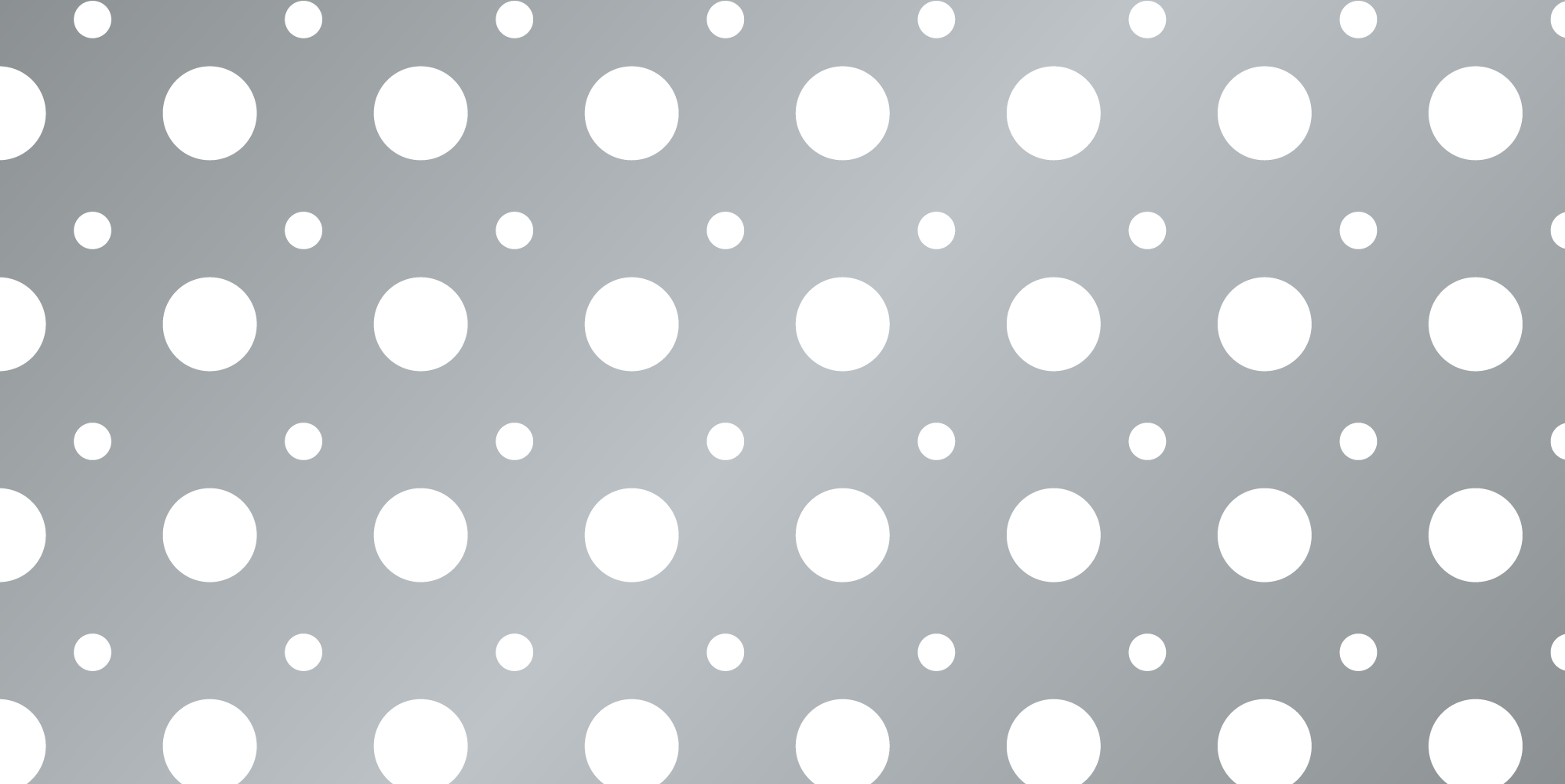

Galaxy 13
DIA: 6.35, 16 @ 36 | OA: 13%

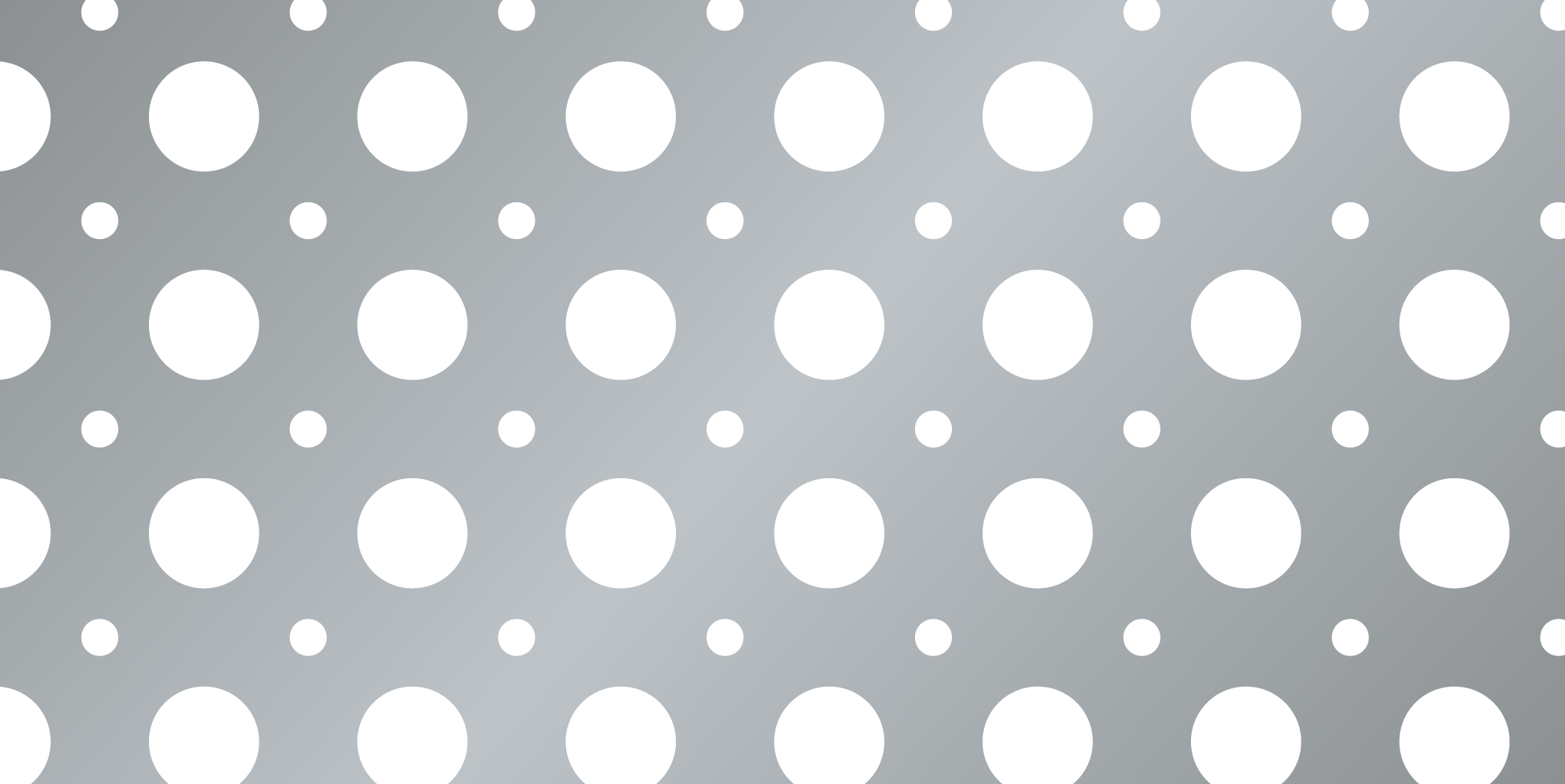

Galaxy 23
DIA: 6.35, 19 @ 36 | OA: 23%
Sprite 1
DIA: 5, 9, 13 @ 16 | OA: 23%
Sprite 2
DIA: 5, 8, 12, 15, 21 @ 25 | OA: 22%
Double L
15 x 15 (L) | 5mm Gap
Herringbone
30 x 5

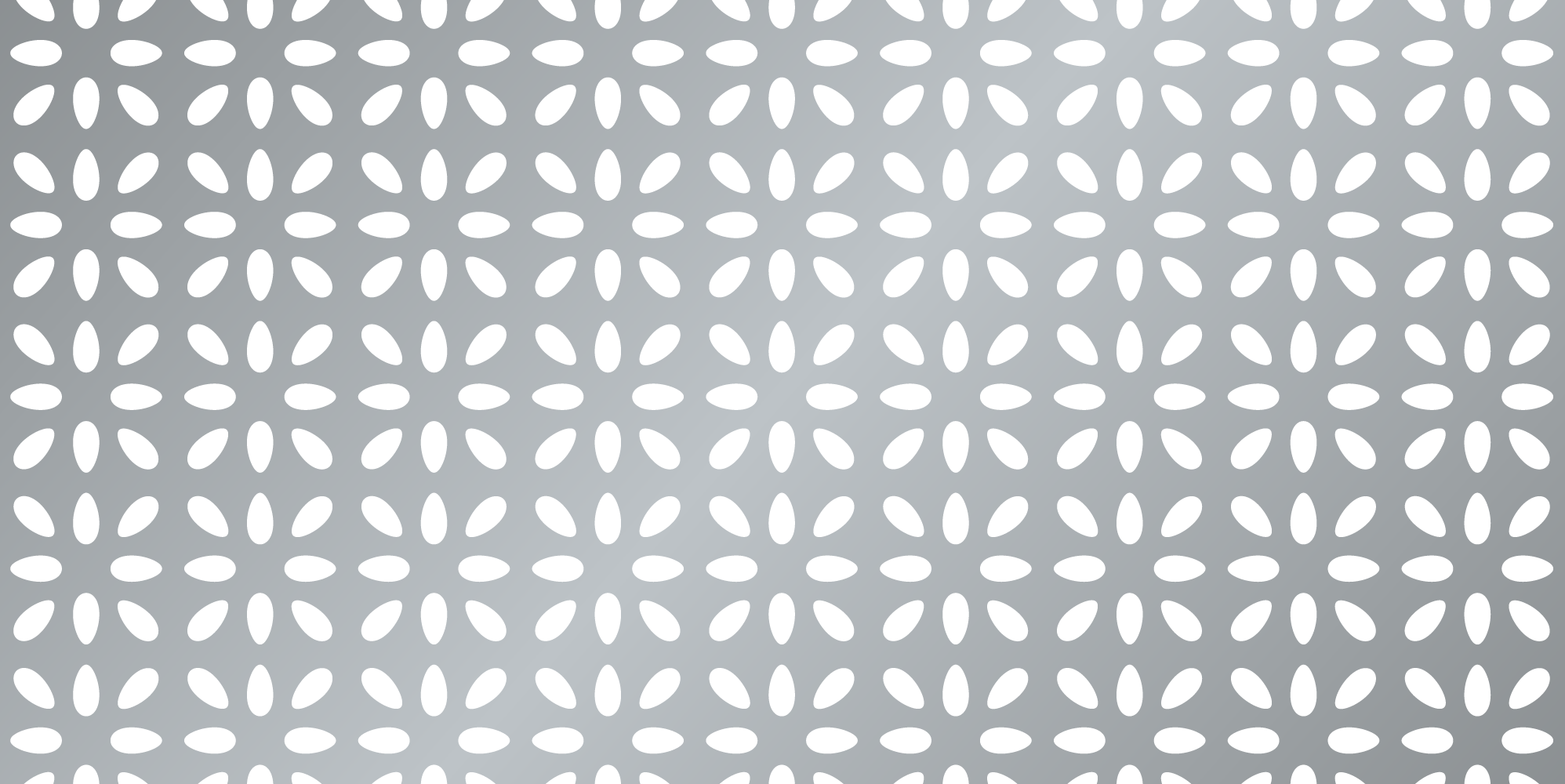

Fancy 1
Only in 1220 x 2440 sheet sizes
Discontinued Limited Stock

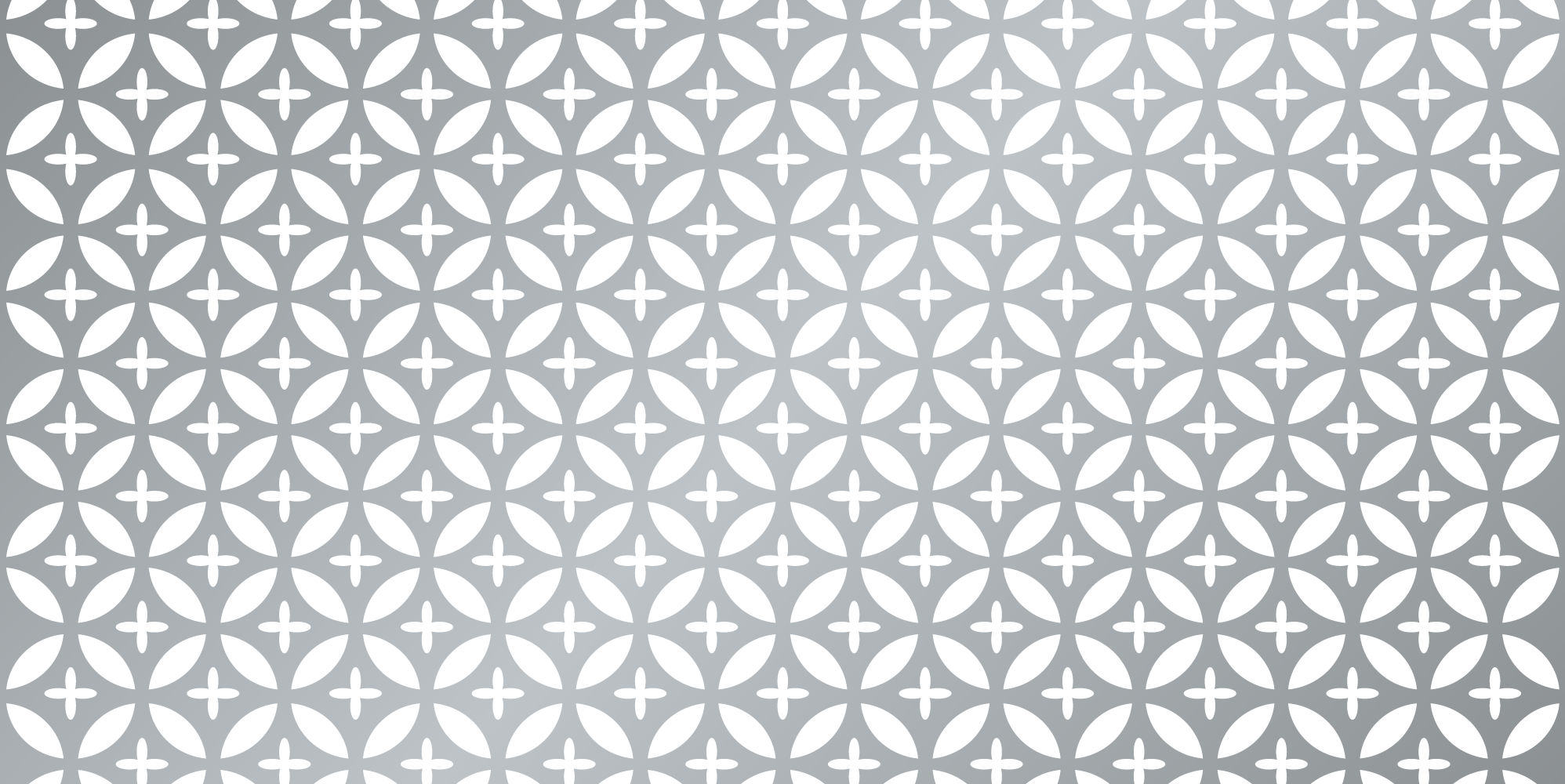

Fancy 2
Only in 1220 x 2440 sheet sizes
Discontinued Limited Stock
